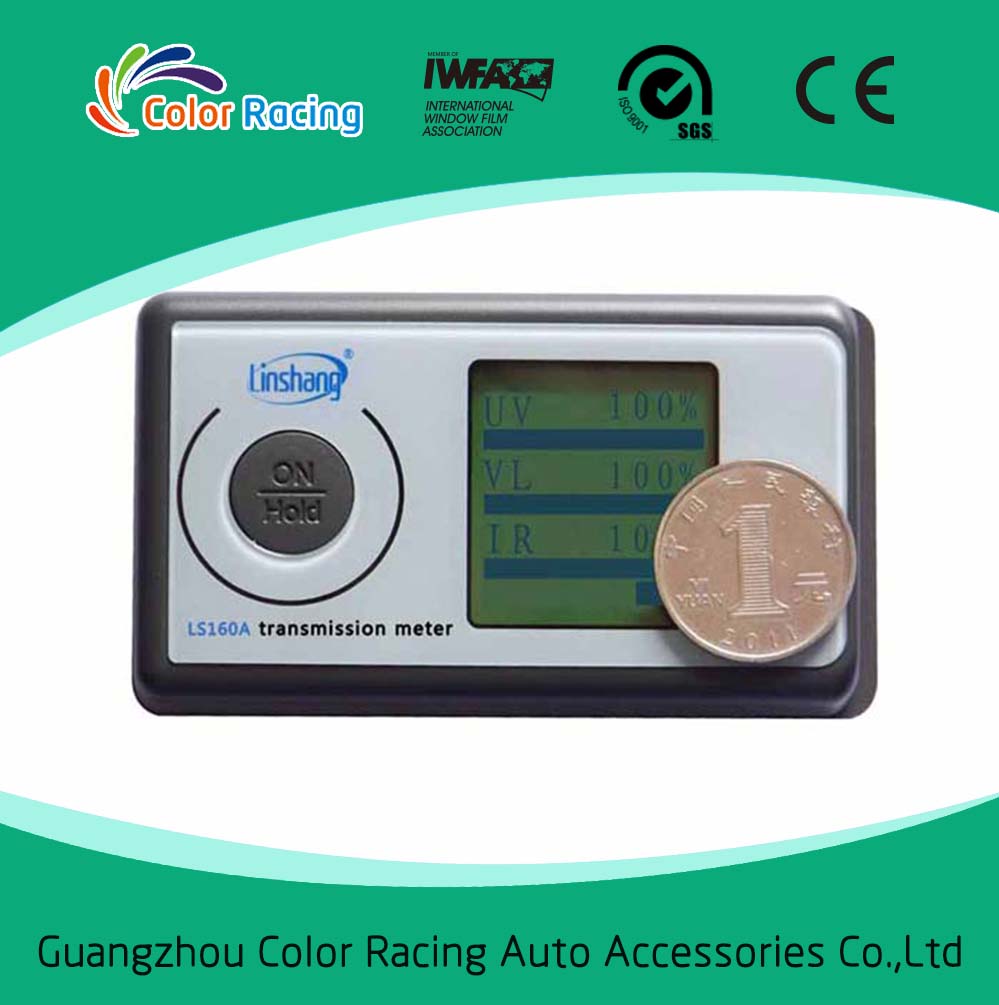

Portable Testing Meter, UV, IR and visible light transmission Solar Spectrum testing Meter

Portable Testing Meter, UV, IR and visible light transmission Solar Spectrum testing Meter

Portable Testing Meter
Product Display

Product Description

Three function in ONE device solar window film testing meter

Solar Spectrum testing Meter
93mm *52mm *25mm
VL Peak wavelength
UV Peak wavelength
Thickness of testing sample
IR Peak wavelength
Power supply
4*AAA alkaline battery


This Testing Meter is able to simultaneously measure and display UV, IR and visible light transmission value. This meter is self-contained light sources and self-calibration. No manual adjustment is needed.The user only need power on the meter and put the testing sample in the opening. The resulting performance data appear on the display.

Detailed Images

Testing Solar Window Film:

Solar window Film Visible Light Transmission

Solar window Film UV rejection rate

Solar window Film IR rejection rate


1. UV transmission meter,Ir transmission meter ,Light Transmittance Meter, Three function in ONE device.
2. Small size, portable product for transmission value measurement.
3. Simple operation,putting the testing sample in the “OPENING” UV, VL and IR transmission values of the sample will simultaneously display.
4 Test any sample thickness up to 8 mm.


1.Power On
When LS162 is off, press the “ON/Hold” key.

2.Power Off
Press “ON/Hold” key and hold for longer than 3 seconds,LS162 will be powered off.

3.Auto Off
No key is pressed in 3 minutes, and then LS162 will power off automatically.

4.Manual Hold
If “ON/Hold” key is short pressed during measure status, transmission value will hold of the LCD,”Hold” symbol is displayed on the LCD. Press the “ON/Hold” key again will release the “Hold mode. When blacklight is off, Press the “ON/Hold” key turn on the backlight.

When the meter displays 100% for each value, insert the testing sample in the “OPENING”, VL, UV and IR transmission value will display simultaneously.


1.When battery symbol is empty and flash, please replace the battery.

2.When not use for a long time(e.g. Several months). please take the battery out

3.Keep the “OPENING” is empty before turn on LS162. Otherwise LS162 will display testing interface, turn off and empty the “OPENING” and turn on again.

4.±2% Accuracy is for Colorless and transparent material, for colorful or optical coating product etc, it will be low accuracy.

5.Avoid contact with corrosive agents and prevent from high temperature and high humidity environment.
